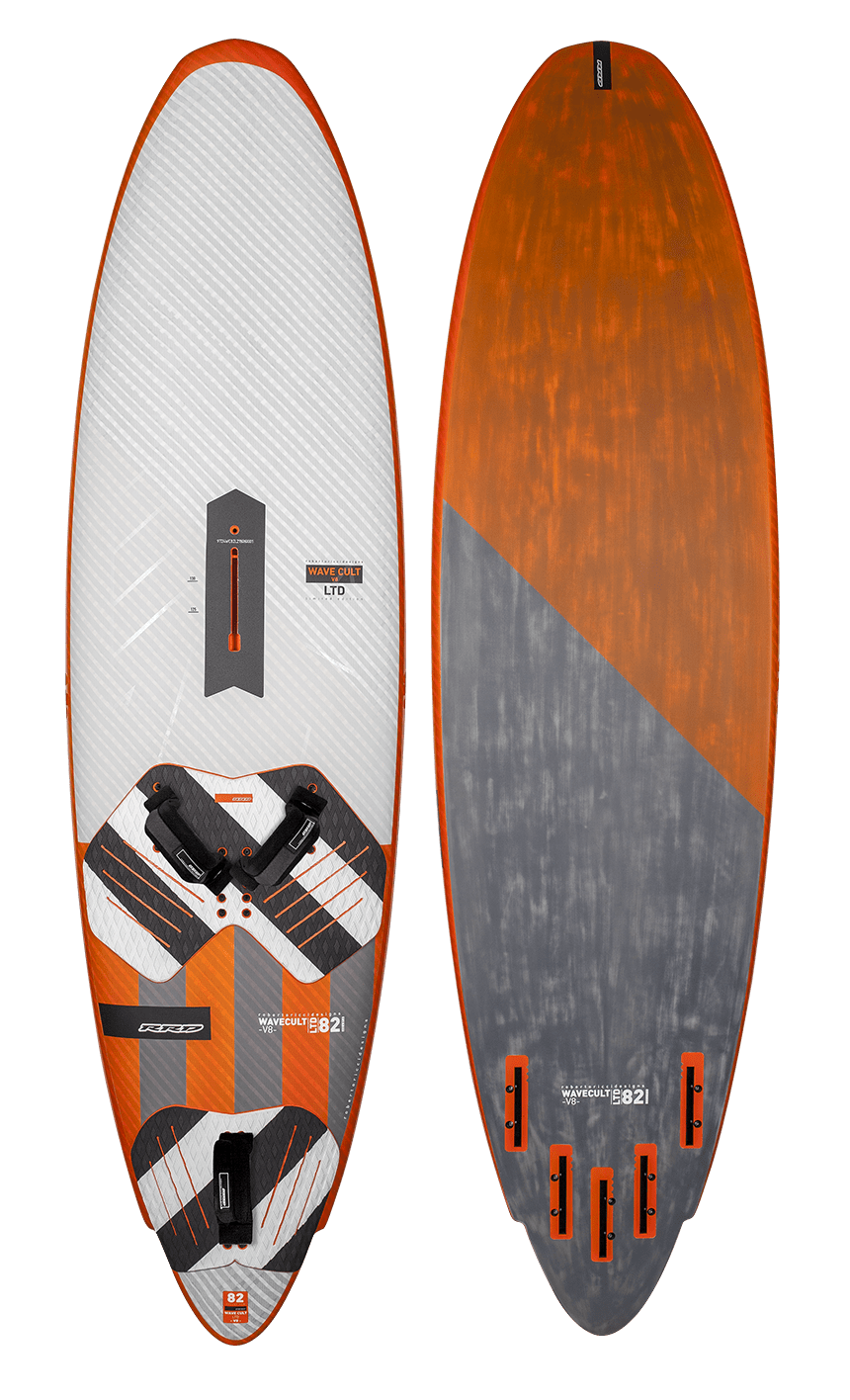

WAVE CULT V8 LTD / LTE

Ltd is the most prestigious technology we have developed and refined over the years. This type of construction is based on the best materials arranged together in order to create the best cocktail of performance, strength and lightness.

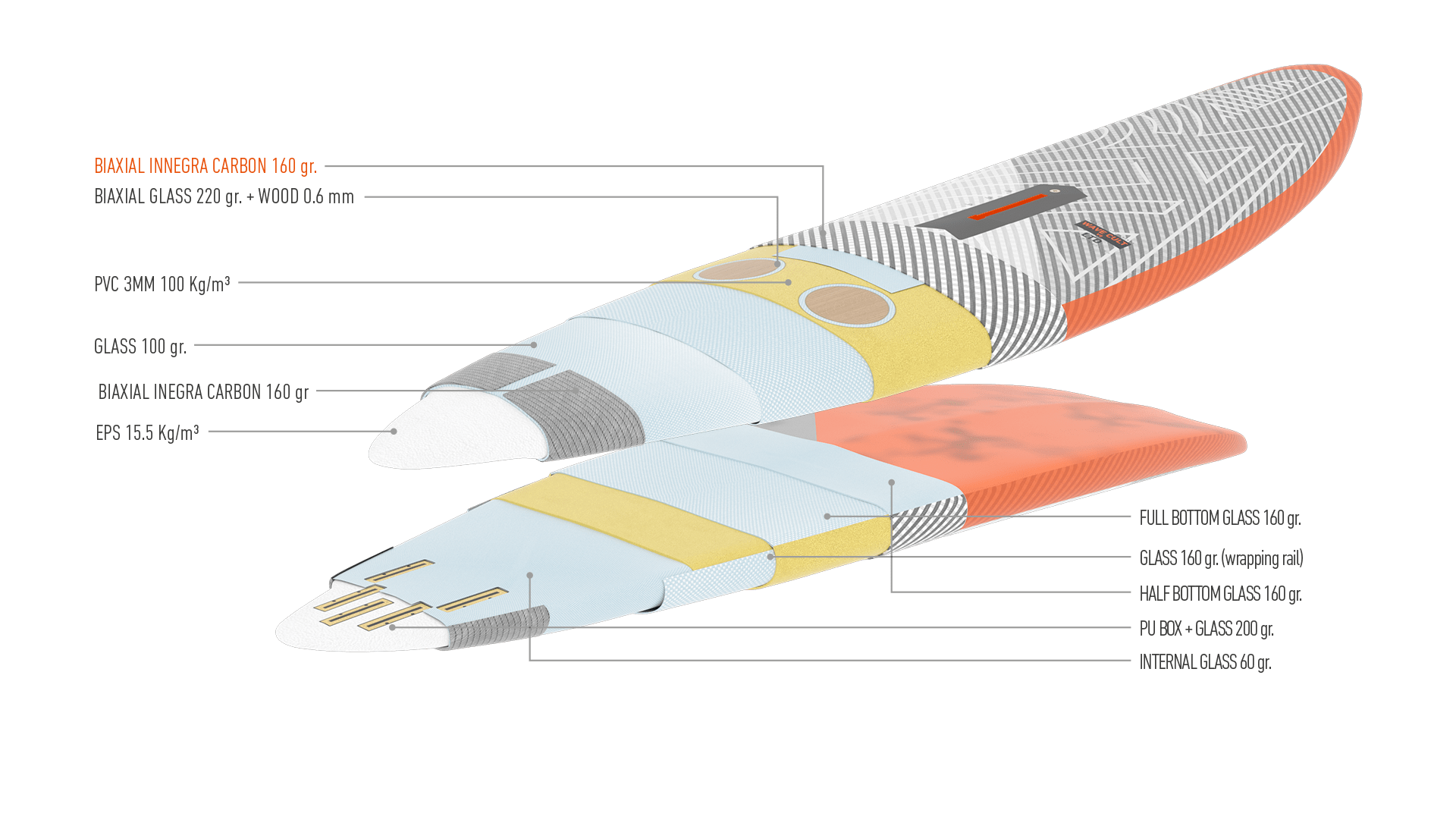

This year, in order to pursue continuous development, we were able to introduce the new Biaxial Carbon Innegra fibers which is a high performance fiber used in composite which can be converted into many different reinforcements. By mixing layers of Innegra and carbon we also got a superb and exclusive look. The bottom is built with PVC foam 5 mm 100 Kgs/m3, covered  with a 160 grams glass full length and a half bottom length glass layer of 160 grams.

The LTE is our wood technology which combines strength and lightness by adding specific reinforcements and perfectly combining them underneath the wood laminate.

We have basically obtained a full sandwich board by adding PVC under the heel area togheter with unidirectional and biaxal fibers on the deck and on the bottom of the board. Those layers are combined together and placed very efficiently to reinforce the most stressed parts and leaving a lighter weight in less stressed areas.
To improve resistance we have added 2 T-stringer engraved with glass in the EPS and, on top of them, we have placed a high density EPS. The HD EPS is only 5mm thick and is similar to PVC but lighter as its weight is only 48kg/m3. This special foam is the main support of the Wood veneer which is placed on top. Those layers are sofisticated and when combined together create a very solid structure and, at the same time, minimizing the weight of the board.
The Wood outside fully covers those layers like a shell and adds resistance to the board as it is one of the most strongest unidirectional fibers existing in nature. The Wood is still one of the strongest material in the market for building boards.
